Coal-Trol Digital Advanced+

Downloads:



Product Features:

  • +/-1 Degree Fahrenheit temperature control precision. (From a Coal Stove?)
  • Average 11% fuel savings over traditional high/low stove thermostats. (Less fuel hauling & less ash? Tell me how.)
  • 4 Weekday and 4 Weekend setpoints (Morning, Day, Evening, and Night), times and temperatures user programmable.
  • Two easy to use temperature setpoint override modes.  Temporary which will last until the next programmed setpoint time and Indefinite which will hold the set temperature until you turn off Indefinite hold mode.
  • Convection fan speed control allows the user to manually set the speed of the motor, in addition to the standard automatic fan speed control found on both the TS2ES and TS2 thermostat models.
  • Works with both two motor and single motor (Tri-burn) feed/combustion air mechanisms.
  • Supports Direct Vent/Power Vent chimney systems.
  • Direct Vent fume switch and bonnet safety sensors are supported, along with a software high temperature limit of 95 degrees Fahrenheit.  If a fault is detected all fans except the direct vent fan are disabled.
  • If included 25ft controller cable is not long enough for your needs, standard ethernet cable, easily purchased from many retail and online stores is a ready alternative.
  • Conforms to UL 873 Standard for Safety for Temperature-Indicating and -Regulating Equipment.





Package Includes:

  • TS2ES Digital Thermostat
  • CM1 Control Module w/Fan contacts
  • 25ft control cord.
  • 7ft power cord.
  • Installation and user instruction manuals.
  • All mounting hardware.

Price: $424.00

Weight: 5.00 lbs

Remember to see if you need a plug cord set.


*** We use PayPal for our online sales.  They accept Visa, Master Card, Discover, and American Express.  You do not need to have an account with PayPal or create an account to complete your order.  When you click the "Proceed to Checkout" button on the PayPal shopping cart page you will be presented with something that looks like this:

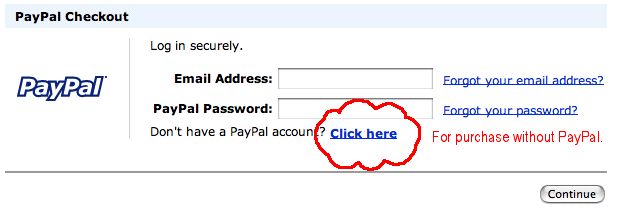

Click on the link indicated in the picture above to purchase with a PayPal account.

If you're uncomfortable with online transactions we gladly accept and encourage calling us directly at 315-299-3589 or contacting your local coal stove dealer.
